535 – Switching monitors

clip_image002Now that monitors are relatively cheap, having more than one display on a PC – and the productivity benefits that can bring – should be a normal situation for everything other than using a laptop on the hoof. Improve your windowing arrangements without anarchy, configuring your displays by right-clicking on your desktop and selecting Display settings.

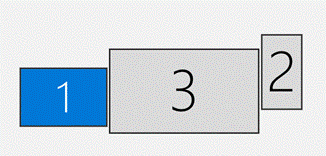

clip_image004clip_image006This will let you move your monitors around to mirror your physical environment, so you can move a mouse or window easily from one screen to the other, and the desktop will span the monitors appropriately.

If you have a big monitor in front of you, and your laptop to the side, you’ll probably want to select the monitor in the Display Settings dialog and select to “Make this my main display”, which is where the Start menu will appear, along with other system related things like the place where the UI for ALT+TAB or WindowsKey+TAB shows.

You can move windows around by dragging them, or learn to use the shortcut keys SHIFT+WindowsKey+left or right arrow which cycles windows between your monitors (and using the WindowsKey and the arrow keys without SHIFT, will snap the active window to the sides, or to max/minimize the window on whatever screen it’s on).

If you ever share a monitor between several machines, XBOXes etc, you might get to a point where you want to stop Windows displaying stuff on a screen that it still sees as connected, even if that monitor is displaying a different source. You could use WindowsKey+P to cycle through the Projection options, of PC only, Duplicate, Extend or Second Screen. If you knew you were on Extend but your primary screen was now showing something else, you could press Wnd+P twice to switch through the options to be back at PC-Only so you can use the machine as normal, and move any windows that were on the 2nd display back to the laptop screen.

clip_image008

If you like a more definite way, you can use WindowsKey+R then enter displayswitch with /internal (for PC only), /clone, /extend or /external for the other options.

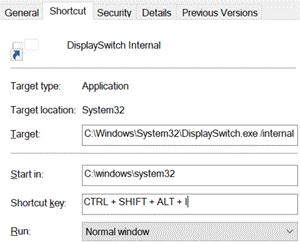

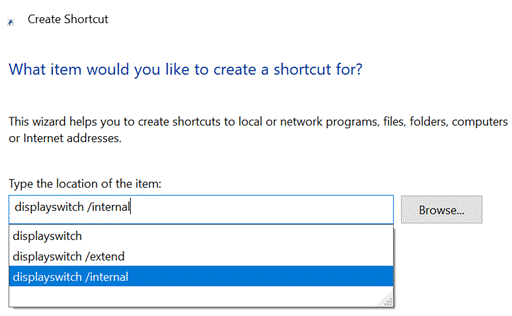

clip_image010Right-click your desktop to go New > Shortcut, and you can add a shortcut, to which you can also assign a shortcut keystroke if you like – then a single keypress sequence will jump to a specific monitor configuration.

As a parting shot, should you want to change which screen is the primary one – rather than forcing a particular display scheme – then you can do that with an open source tool called nircmd, that lets you fire a command (like nircmd setprimarydisplay 2) to switch the primary display to that numbered screen.

534 – May Update maybe

clip_image002

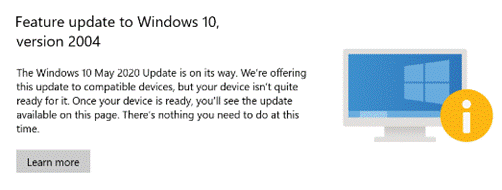

As discussed a couple of weeks back, the May 2020 Update to Windows 10 is making its way to users via Windows Update, though not yet all users.

A few incompatible hardware problems have blocked the installation on a series of machines, including the latest Surface models like Surface Book 3, Surface Pro 7 and Surface Laptop 3.

As part of Patch Tuesday this week (9th June), a fix was rolled out (along with lots of other security updates) which should unblock these machines in time. It’s worth proactively going to Updates in your PC’s settings and make sure it has downloaded and installed any and all updates, firmware upgrades and so on. If you have a Surface machine, you can see – and manually download – a list of all the applicable updates, here.

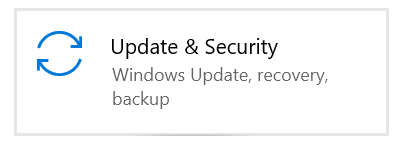

clip_image004There’s still a compatibility hold which may be active for a few weeks as the Update makes it way to all affected devices. If you’ve applied all the pending changes via Settings -> Update & Security, you can manually kick-off the 2004 upgrade, by going to the Update Assistant page and hitting the Update Now button.

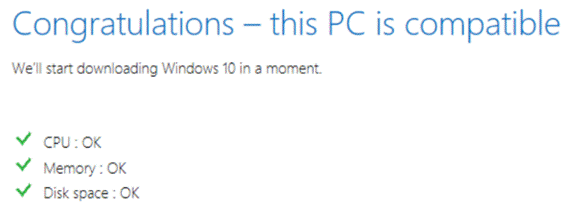

clip_image006This will download an installer program that will check the PC has the minimum spec, has enough disk space and so on, then it’ll begin the download and install process, which will take a good few minutes to complete, with plenty of downloading / checking / applying etc cycles to complete.

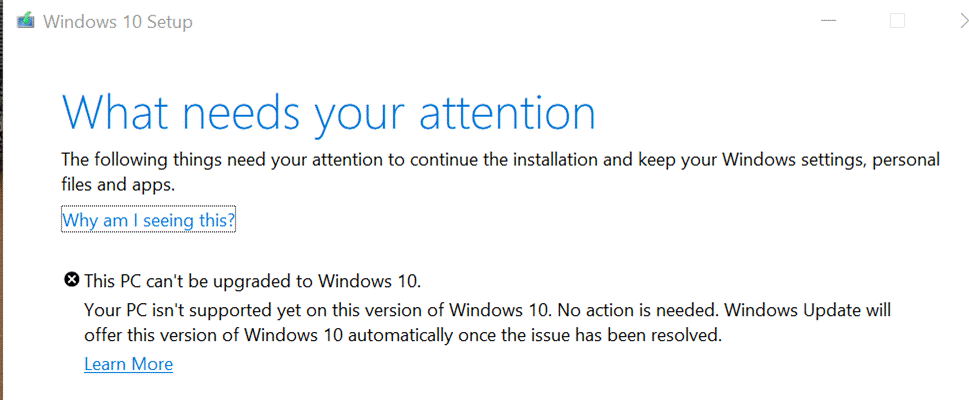

You might be disappointed at the end, though – if the compatibility hold still applies to your machine, the process will run all the way through then tell you …

clip_image008

Boo.

[if you’re not offended by foul language, go to YouTube and search Fred MacAulay etiquette

It’s most appropriate, if a little colourful for some, so you’ll need to find it yourself]

533 – Revisiting TaskMgr

clip_image002If  you’ve ever had problems with your PC’s performance, you may have turned to Task Manager. It’s been in Windows since the NT4.0 days, when developer Dave Plummer came up with a bit of software he was planning to sell, but decided to donate it to his employer instead:

I’m the Microsoft developer that wrote TaskMgr at home in my den in about 1994 and then the NT silverback devs [ie Dave Cutler] let me check it into the main tree even though I was a greenhorn at the time. So that meant I got to bring it into work and polish it up and make it an official part of Windows, where it remains to this day.

clip_image004

Dave tells his career story from a talk a couple of years back, but hit the news recently through a Reddit post from which the italic text above originates.

He was inspired to apply to Microsoft in 1993 – having read the Hard Drive book (an excellent historical tome, having inspired at least a few great Microsofties to join up), then went on to write various money-saving optimisations for MS-DOS, and ended up in the NT team, leaving the company 10 years later.

Dave also recommends another great history book – Showstopper!

Back to the current era, Task Manager is still a really useful tool when it comes to figuring out issues with your Windows PC. If you think something is wrong (app starts bogging down, feels like the PC is in a bad way), you can quickly start Task Manager with the shortcut CTRL+SHIFT+ESC (easy to hit with one hand…)

clip_image006In an emergency (if it feels like your laptop it about to blow up, with fan blaring, screen blinking, UI non-responsive etc – maybe joining a Teams call or opening an Excel spreadsheet), it’s usually possible to throw TASKMGR its own special three-fingered-salute, since it isn’t tied to the Windows Shell –  you can use even Task Manager to kill or restart the EXPLORER.EXE that sits under the Start menu, task bar etc.

If you can get to Task Manager, you can run a CMD or Powershell prompt, start explorer or msedge etc.

Practical Example

A colleague pleaded recently that he was having a poor experience with Teams, and queried, did he need to upgrade his 150Mbps internet connection?

To check what kind of network performance you’re actually receiving, there are many speed test apps and sites.

If you’re using the new Edge (if not, why not? Don’t use IE – it’s too old;  stop using old Edge – it’s obsolete; the new Edge is fast and it’s better than Chrome), and you have Bing as your default search engine, all you need do is enter ? speed test into the address bar and you’ll get a speed test gadget to give you an idea of performance.

clip_image008If the base speed looks OK, use Task Manager to inspect what’s happening – fire it up in your favoured way (clicky-clicky-menu, right-click the taskbar, CTRL-ALT-DEL > Task Manager, if not CTRL-SHIFT-ESC) and by default you’ll see the near-useless list of what’s running with no other context. Time to show more details…

On the Processes tab, click on the CPU column to sort by what’s using the processor most – its also worth casting an eye on some other resources to make sure they’re not running out of steam; if you see an app consuming a huge amount of memory, it might be leaking, and shutting it down completely could make all the difference.

clip_image010

Task Manager lets you kill processes (“End Task”) too, if the app has hung and won’t close cleanly. In fact, Dave said there should be nothing that Task Manager can’t kill (apart from some critical system processes – TM might have been able to kill them, but will also bluescreen the machine … so some protection has been added to prevent the user from doing something that would be instantly fatal to Windows – though TM is able to kill itself).

Back to the Teams troubleshooting scenario – If you don’t see the PC getting nailed by some process (that isn’t Teams itself), then it’s worth looking at the Performance tab, and leave it running for a short while, paying particular attention to WiFi/Ethernet.

clip_image012

clip_image014If you see sustained high throughput, then switch back to the Processes tab, sort by Network and you can see what service/app it is that’s hammering the connection. You could fire up Resource Monitor if you want to dig in even further, started from the bottom of the Performance tab. ResMon lets you drill down to see what a single process is doing, what it’s connecting to, how much network traffic is going to and from it, and so on. Useful, if you like that sort of thing.

Finally, your network might perform brilliantly most of the time, but every so often you get a blip that feels like it’s dragging, then it picks up again. This could be spikes in latency, the enemy of anything real-time, like video calls.

Try running the Microsoft Research Speed Test appclip_image016 the nice thing is that it keeps a history log, so if you ever think your connection is bogging down, try running a realtime test.

The Network delay is actually key here – if you had more than 1Mbps upload and 5Mbps download speed, that should be plenty – but if your network delay is commonly more than ~150ms, it’s going to start causing problems.

If you have a network connection whose latency fluctuates a lot, there are a bunch of things you could do to seek and troubleshoot:

  • Is something else on your network uploading huge amounts of data (a backup process, or OneDrive sync maybe) ? This is particularly important if you use an ADSL type connection, where choking the upload will also dramatically reduce download throughput too.
  • Is your wireless network getting interference? (try switching to a wired network, or use a Wifi Analyzer app to see if the channel it’s using has a noisy neighbour?)
  • Pin the blame on your service provider by keeping a log of latency performance over time, using something like http://ping-test.net/. If you can prove that your own network is stable, but there are glitches upstream somewhere, then you may be able to make your ISP turn their attention to their own network – tools like WinMTR will help you validate the performance of the network all the way between your machine and some endpoint; so if your ISP has networking problems, you might see spikes happening.
